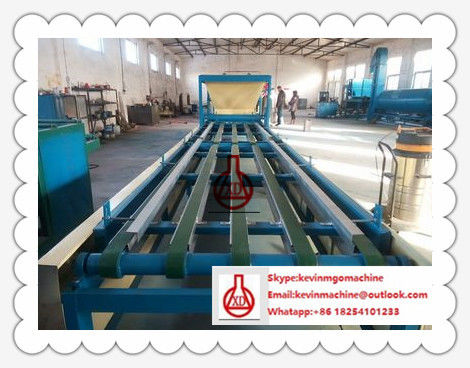

Anti Earthquake Performanc Wall Board Making Machine with Cold Pressure Method

Anti Earthquake Performanc Wall Board Making Machine with Cold Pressure Method
Anti Earthquake Performanc Wall Board Making Machine with Cold Pressure Method Anti Earthquake Performanc Wall Board Making Machine with Cold Pressure Method Anti Earthquake Performanc Wall Board Making Machine with Cold Pressure Method Anti Earthquake Performanc Wall Board Making Machine with Cold Pressure Method

Large Image :  Anti Earthquake Performanc Wall Board Making Machine with Cold Pressure Method

Product Details:
Place of Origin: CHINA
Brand Name: chuangxin
Certification: ce
Model Number: XD-D
Payment & Shipping Terms:
Minimum Order Quantity: 1 sets
Price: negotation
Packaging Details: packing
Delivery Time: 30 days
Supply Ability: 10 sets per month

Anti Earthquake Performanc Wall Board Making Machine with Cold Pressure Method

Description
Production Capacity: 2000sqm Warranty: 1 Years
Automatic Grade: Automatic
High Light:

wall making machine

,

roof panel roll forming machine

Anti Earthquake Performanc Wall Board Making Machine with Cold Pressure Method





 XD-B Full Automatic MGO Wall Panel Maming Production Line With 2000 SQM



Compressive Strength ~20 MPa (3, 000 PSI)
Impact Resistance > 6 kJ/m2
Tensile Strength > 5.5 MPa
Density (Specific Mass) ~1000 Kg/m3 (+/-< 2%)
Moisture Absorption ~26% maximum saturation (slow absorption rate)
Moisture Content ~6%
Water Vapour Diffusion ~28 / 35
Specific Heat ~930 J/kgK
Thermal Conductivity ~0.44 W / mK
Modulus of elasticity ~6045 N/mm2
Flexibility
UNI E 12372
~20.1 N/mm2 maximum
12mm x 1220 x 2440 = 10 N/mm2
Surface Alkalinity ~10 Ph
Thermal Expansion Hot/Cold 0, 01 mm/mC (from temp +20C to -20C)
Expansion in Water less than < 0.02% from ambient to saturation
Freeze / Thaw - UNI EN 520 100 cycles without notable effects
Frost Resistance no water drops form on surface
Combustibility / Fire Ratings non-combustible / 12mm exceeds 1 hr fire rating
Dimensional tolerance thick 0.2mm / width 2mm / length 3mm / Sq. 3mm
Toxicity Pollutants Heavy Metals - UNI EN 12457-2 Below measurable levels of test instruments
Asbestos Analysis Absent - not measurable
Formaldehyde Analysis Absent - not measurable
Sound Attenuation (9mm) tested design ASTM E90 = STC 48, 50, 55, & 60
Color Slate Grey and Chalk White
Surface texture smooth one side; uniform machine textured back
Basic Compounds (MgO)+(natural silicates)+(glass fibre)+(wood fibre)



1

Air-dry density

≤ (Standard index)50kg/m2

(Test Value)

 30.0kg/ m2

2

Drying shrinkage

 rate of the board

≤0.08%

0.015%

3

Anti-breaking load

≥1400N

5640N

4

Anti-impact

No breakage phenomenon

 such as cracking after

 three impacts

No breakage

 phenomenon such

as cracking after three

impacts

5

Thermal resistance

 of main section

 (T=90mm)

≥1.35(m2.k)/w

≥1.36(m2.k)/w

6

Thermal bridges area ratio

≤8%

2.22%

7

Sound insulation Index



36dB

8

Radioactivity



None



       Anti Earthquake Performanc Wall Board Making Machine with Cold Pressure Method 0Anti Earthquake Performanc Wall Board Making Machine with Cold Pressure Method 1





III  Feature

 1. Anti-earthquake with light weight: In view of its weight per unit area is only 1/10 of red brick wall, the product has good anti-earthquake performance. It can be used at low-rise building and high-rise building, and it is preferred to be used at workshop with steel frame structure. It can replace the color steel plate with its better performance.

2. Fast and convenient operation: It can be installed by board or combination with the dry method, and the product can be nailed, cut, planed, drilled and stuck.

3. Low comprehensive cost: The product is made of agricultural and industrial wastes, so the production cost is low. With the low load of girder and short construction period, it can reduce over 20% of engineering cost after compared with solid brick and hollow brick.

 4. Energy-saving and environmental protection: The production processing need no high temperature and high pressure. Being a green environmental-protection energy-saving building materials, the product has no toxicity, harm, pollution and radioactivity.

5. Increasing the usage area: Under the same condition of heat-preserving and sound insulation, with the thinner plate, the product can increase over 10% usage area after compared with the same building.

 6. Having the following features: fireproofing, water-proof, anti-impact, acid & alkali resistant and anti-aging.
